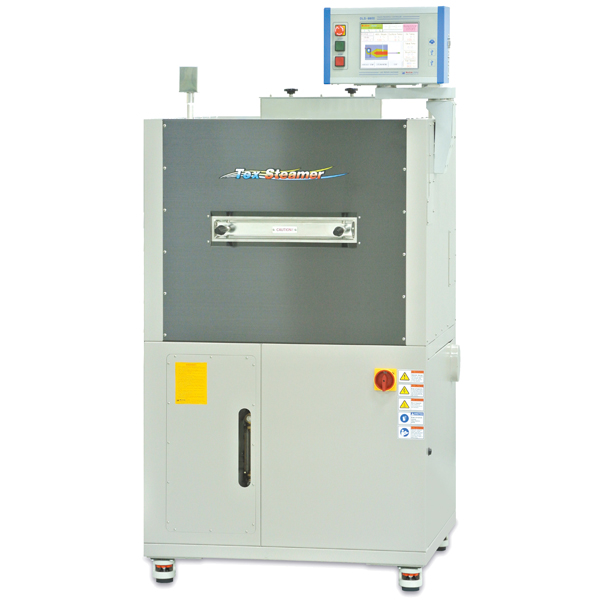

Tex Steamer

A laboratory steamer (or “Tex Steamer” in a lab context) is a specialized, compact piece of equipment used in textile, dyeing, and printing laboratories to simulate industrial production processes, primarily for dye fixation, curing, and finishing of fabric samples. It bridges the gap between laboratory color development and full-scale factory production.

Description

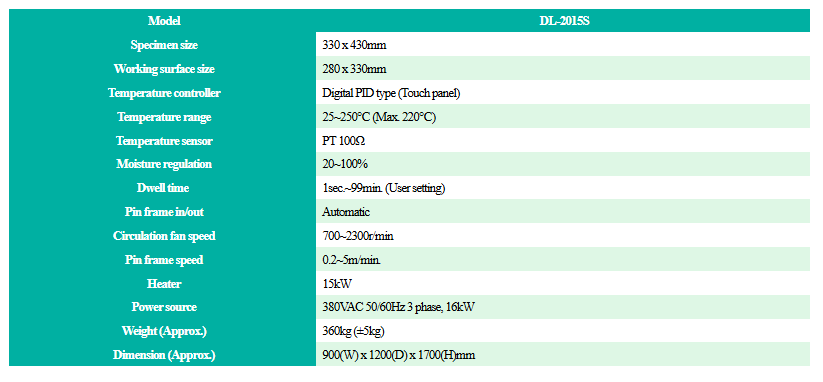

Specifications:

 Model  DL-2015S
 Specimen size  330 x 430mm
 Working surface size  280 x 330mm
 Temperature controller  Digital PID type (Touch panel)
 Temperature range  25~250℃ (Max. 220℃)
 Temperature sensor  PT 100Ω
 Moisture regulation  20~100%
 Dwell time  1sec.~99min. (User setting)
 Pin frame in/out  Automatic
 Circulation fan speed  700~2300r/min
 Pin frame speed  0.2~5m/min.
 Heater  15Kw
 Power source  380VAC 50/60Hz 3 phase, 16Kw
 Weight (Approx.)  360kg (±5kg)
 Dimension (Approx.)  900(W) x 1200(D) x 1700(H)mm

Download Catalog
