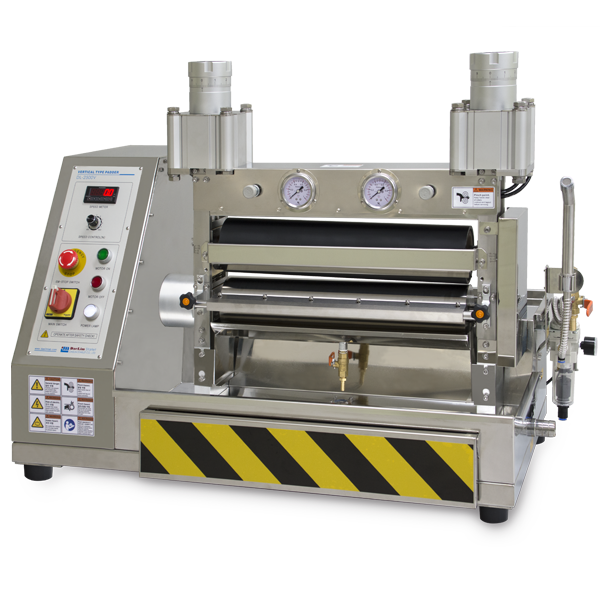

A Padder-Gravure Coater (often used as a combined or versatile unit in textile labs) is a specialized laboratory instrument designed to apply dyes, chemical finishes, or functional coatings to fabric samples with high precision, simulating large-scale production, and controlling moisture/liquor content. It combines the dipping/squeezing mechanism of a padder with the precise, patterned application mechanism of a gravure coater.
Specifications:
| Â Model | Â DL-2500GV |
| Â Type | Â Vertical |
|  Roller size |  Ø110 x 500mm |
| Â Working width | Â 450mm |
| Â Roller material | Â Rubber(15mm) – Top
 Teflon plating – Bottom |

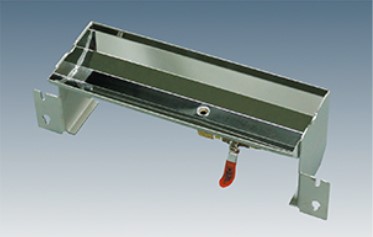

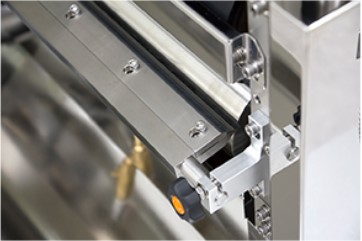

| Â Doctor blade size | Â 510 x 20 x 0.2mm |
|  Air cylinder pressure |  0~7kgf/㎠|

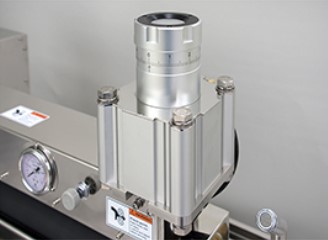

| Â Air cylinder | Â Piston type |
| Â Motor | Â 400W |
| Â Power source | Â 220VAC 50/60Hz single phase, 500W |
|  Weight (Approx.) |  160kg (±5kg) |
| Â Dimension (Approx.) | Â 1080(W) x 670(D) x 820(H)mm |
