Shaker-Water bath

A Shaker-Water Bath in a textile lab is a specialized, dual-purpose instrument that combines precise temperature control with consistent agitation to simulate wet processing, such as dyeing, washing, and finishing, on a laboratory scale. It provides a controlled, submerged environment, typically up to 100°C, to ensure uniform heat and chemical distribution for testing and small-batch production.

Description

Specifications:

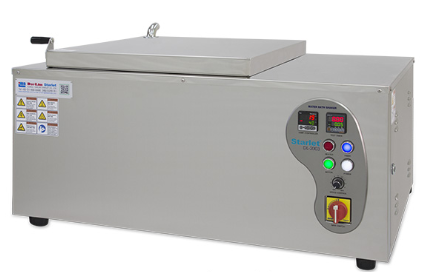

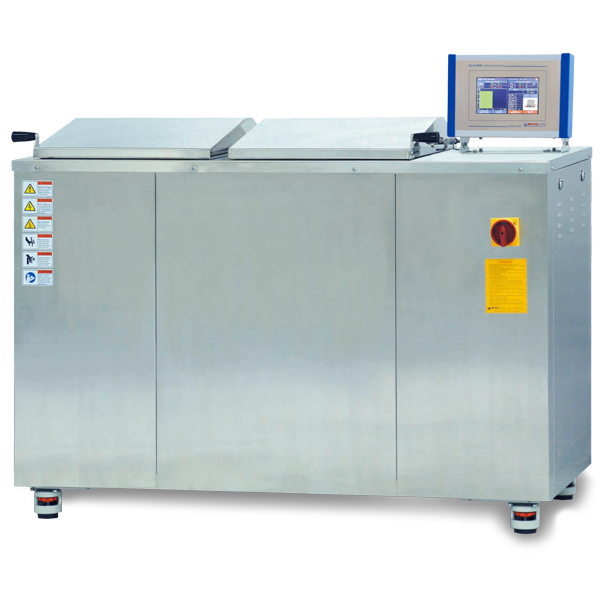

Model   DL-2003 (30 x 1 Bath)  DL-2003 (16 x 2 Bath)  DL-2003  (30 x 2 Bath)
 Flask holder  250 x 30ea  250 x 32ea  250 x 60ea
 Temp. controller  Digital PID type  7” Color touch panel  7” Color touch panel
 Temp. range  25~99
 Reciprocating speed  25~200r/min.
 Stroke  30mm
 Material  Internal – SUS#304 polishing

 External – SUS#304 H/L

 Test timer  Digital 99min. 59sec.  Digital 99min. 59sec.  Digital 99min. 59sec.
 Heater capacity  4000W  8000W  8000W
 Drive Motor  100W (Inverter control)  100W (Inverter control)  100W (Inverter control)
 Power source  220VAC 50/60Hz single phase,

 4.5Kw

 220VAC 50/60Hz single phase,

 8.5Kw

 220VAC 50/60Hz single phase,

 8.5Kw

 Weight (Approx.)  75kg (±2kg)  140kg (±5kg)  175kg (±5kg)
 Dimension

(Approx.)

 1170(W) x 750(D) x 550(H)mm  1450(W) x 700(D) x 1110(H)mm  1780(W) x 790(D) x 1110(H)mm
