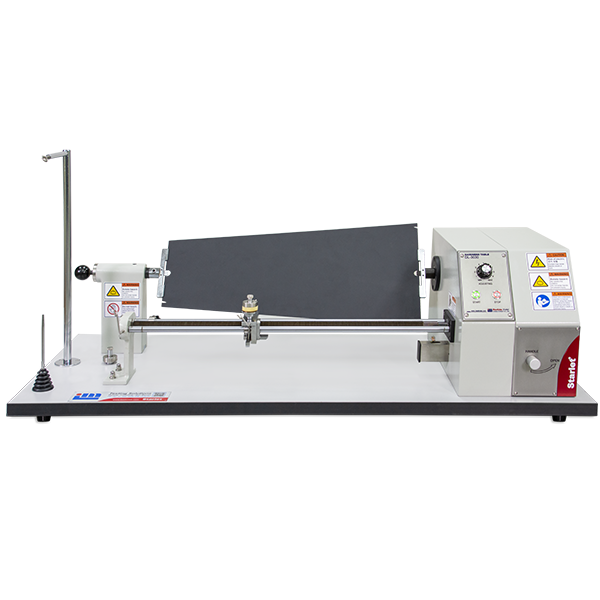

A yarn examining machine evaluates yarn appearance, neps, and impurities by wrapping yarn onto a blackboard at a precise density. Key steps include fixing the blackboard, threading the yarn through guide rings and tension weights, adjusting density, and running the motor to create a smooth, even sample for visual comparison.
Specifications:
| Â Model | Â DL-3030 |
| Â Blackboard size | Â 574(W) X 160(Left) X 250(Right) X 3(T)mm |
| Tension mode | Â Grade load weight |
| Yarn-reeled density | Â 8, 9, 10, 13, 15, 19, per cm or 20, 22, 26, 32, 38, 48 per inch total six files |
| Operating noise | 50dB |
| Motor | 50W |
| Motor Speed | 50~300r/min. (Adjustable) |
| Power Source | AC 220/230V 50/60Hz, 1-Phase |
| Weight (Approx) | 35kg (±2kg) |
| Dimension (Approx) | 1,100(W) X 450(D) X 510(H)mm |
