Air Permeability

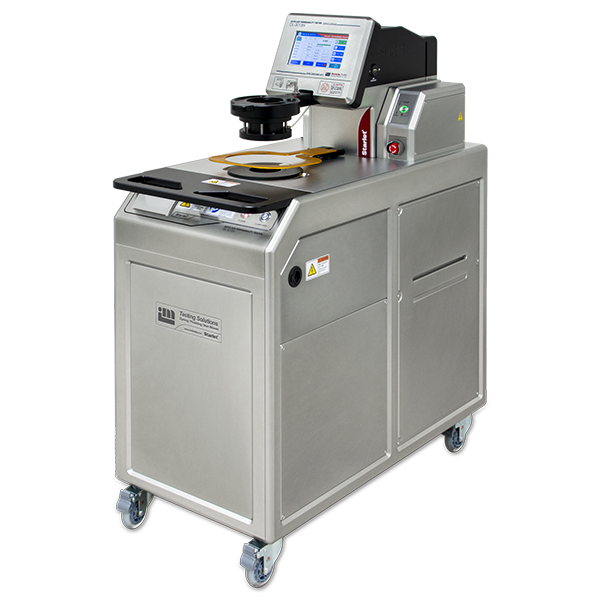

The Daelim Starlet (DL-3013N) is an automatic air permeability tester used to measure fabric breathability by calculating the rate of airflow through a specimen, complying with standards like ISO 9237, BS 5636, ASTM D 737, JIS L 1096-A, KSK 0570 . It is crucial for testing textiles, nonwovens, and industrial materials, often applied to clothing, airbags, and filters to assess comfort and performance.

Description

Specifications:

 Model  DL-3013N
 Pressure range  20~1000Pa
 Air permeability  0.1~700 cm³/cm²/sec. (38 cm²)
 Accuracy  ±2%
 Measuring thickness (Max.)  Max. 12mm
 Adjusting suction volume  Data feedback by dynamic adjustment
 Sample clamping area  20㎠, 38㎠ (Option – 5㎠, 25㎠, 50㎠, 100㎠)
 Unit  ㎤/㎠/s, mm/s, ℓ/㎡/s, dm/min,  ℓ/d㎡/min, m/min, m/h, cfm
 Nozzle  8ea (Auto change)
 Test plate material (Upper)  Aluminum alloy
 Print method  Strip printer
 Power source  220VAC 50/60Hz single phase, 800W
 Weight (Approx.)  155kg (±5kg)
 Dimension (Approx.)  450(W) x 920(D) x 1160(H)mm

Download Catalog
