Description
Specifications:

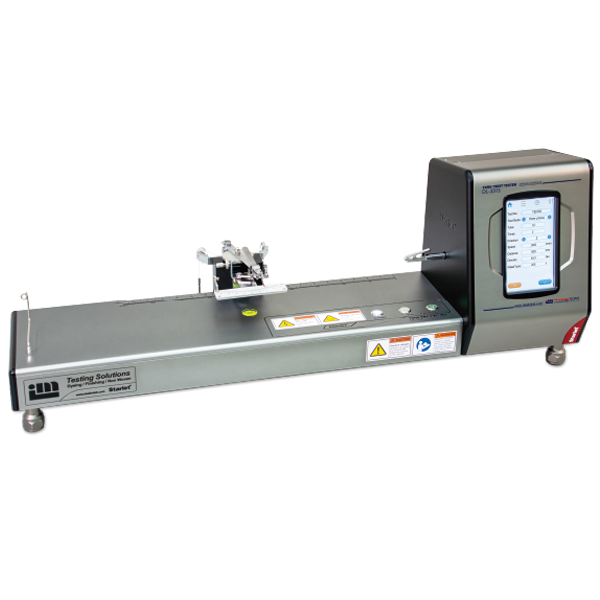

| Standard | DL-331S |
| Test method | GB/T2543.1~2-2001, FZ/T10001-92, BS2085 ISO 2061:1995, ASTM D1422~3, JISL 1095 |
| Gauge | 1. Counting directly
2. One time untwist |
| Range of twist | 25, 50, 100, 250, 500（mm） |
| Untwist elongation | 0~60mm |
| Shrinking of untwist | 0~20mm |
| Rotary Clamp speed | 200~2000r/min |
| Pre-tension range | 0.5~110.5cN |
| Operating noise | 50dB |
| Motor | 20W |
| Power source | AC 220/230V 50/60Hz, 1-phase |
| Weight (Approx.) | 21.4kg (±2kg) |
| Dimension (Approx.) | 960(W) X 275(D) X 370(H)mm |
