Tex Steamer

The DL-2015S is a high-performance laboratory stenter designed to simulate industrial drying, curing, and heat-setting processes on a manageable scale. Featuring a sophisticated Touch Panel Digital PID controller, this unit allows for precise control over thermal conditions, making it an indispensable tool for textile finishing labs and dye houses.

With its automatic pin frame system and adjustable circulation speeds, the DL-2015S ensures uniform heat distribution and tension control for high-quality fabric samples.

Category

Description

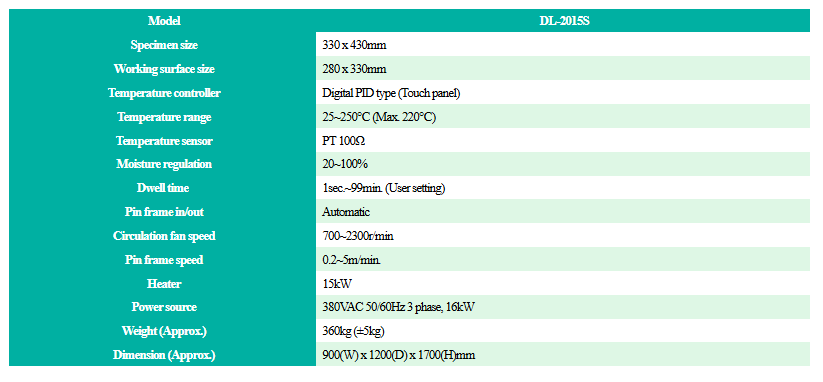

Model

 DL-2015S

 Specimen size  330 x 430mm
 Working surface size  280 x 330mm
 Temperature controller  Digital PID type (Touch panel)
 Temperature range  25~250℃ (Max. 220℃)
 Temperature sensor  PT 100Ω
 Moisture regulation  20~100%
Dwell time  1sec.~99min. (User setting)
 Pin frame in/out  Automatic
 Circulation fan speed  700~2300r/min
 Pin frame speed  0.2~5m/min.
 Heater  15kW
 Power source  380VAC 50/60Hz 3 phase, 16kW
 Weight (Approx.)  360kg (±5kg)

 Dimension (Approx.)

 900(W) x 1200(D) x 1700(H)mm
