Description
Specifications:

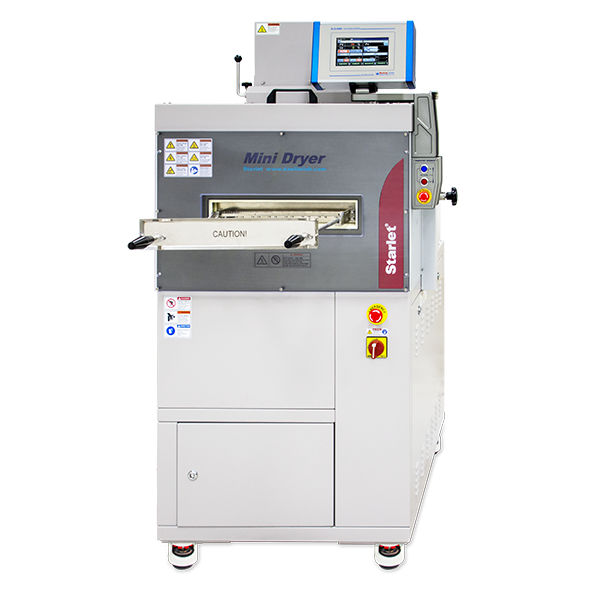

| Model | Â DL-2015 |
| Â Specimen size | Â 300 x 430mm |
| Â Working surface size | Â 280 x 330mm |
| Â Dwell time | Â 1sec.~99min. (User setting) |
| Â Circulation fan speed | Â 700~2500r/min. |
| Â Circulation fan motor | Â 750W (Inverter control) |
| Â Heater | Â 7200W (10.5Kw – Option) |
|  Temperature range |  25~250℃ (Max. 220℃) |
|  Over the heat limit |  280℃ |
| Â Pin frame in/out motor | Â 200W (Inverter control) |
| Â Power source | Â 380VAC 50/60Hz 3 phase, 8.5Kw |
|  Weight (Approx.) |  310kg (±5kg) |
| Â Dimension (Approx.) | Â 850(W) x 1200(D) x 1650(H)mm |
