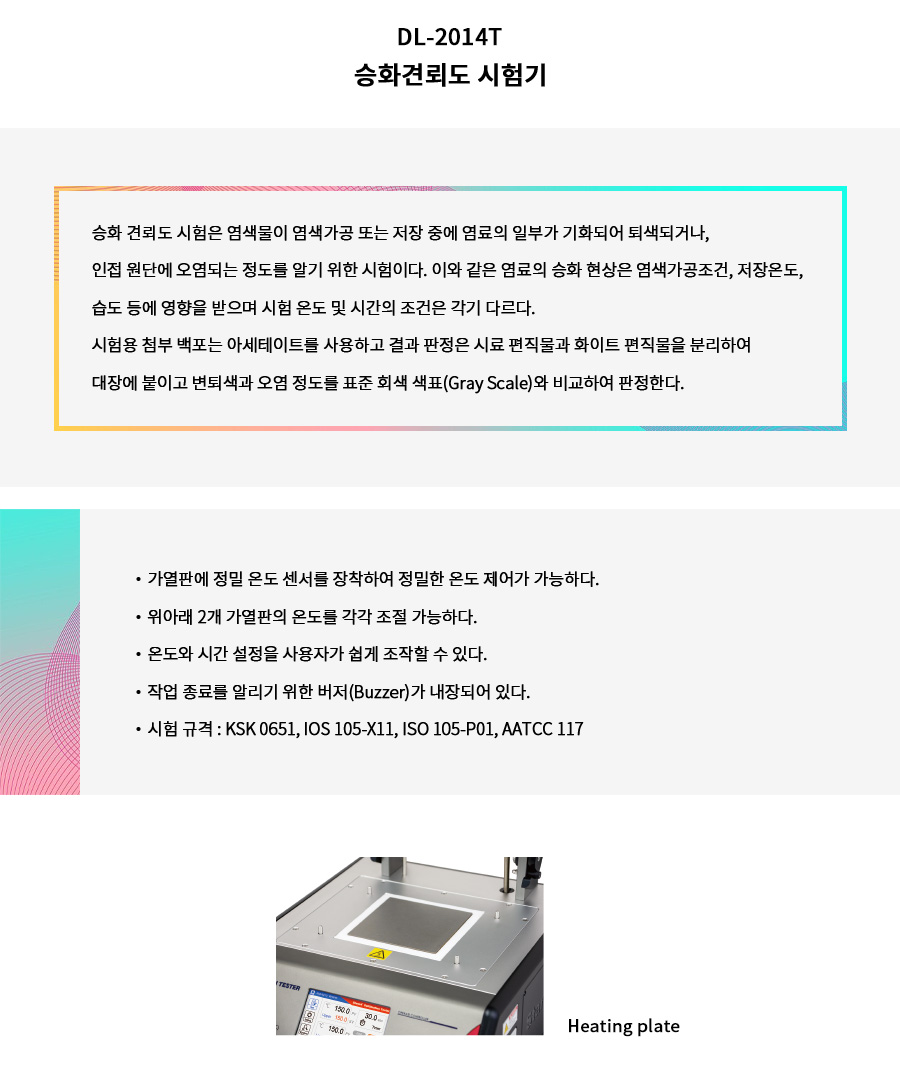

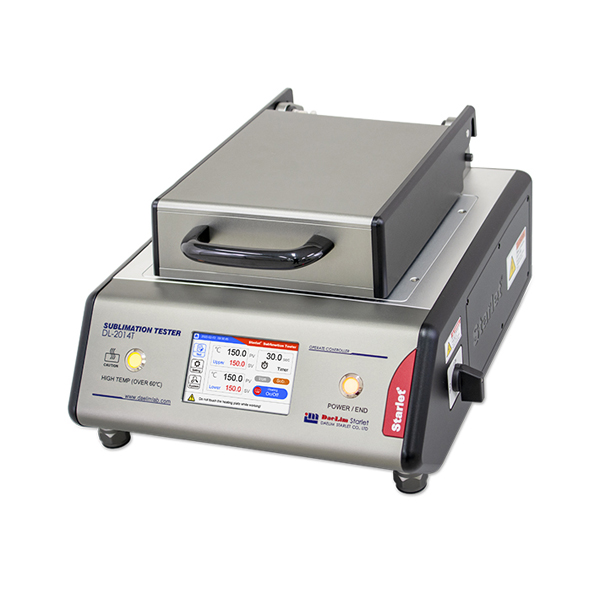

The DL-2014T Heating Plate Tester is a compact and precise laboratory instrument designed for thermal testing applications. It features a single 125 × 125mm heating plate, an adjustable temperature range of 50–250°C (max. 220 ±2°C), and an intuitive LCD touch panel controller. With a digital timer up to 999.9 seconds, end-of-test buzzer, and a stable multi-heater design, the DL-2014T delivers accurate and reliable heating performance for textile and material testing laboratories.

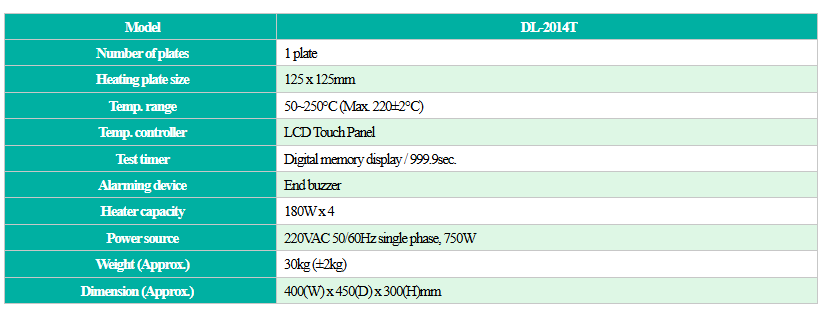

| Model |
DL-2014T |
| Number of plates | 1 plate |
| Heating plate size | 125 x 125mm |
| Temp. range | 50~250℃ (Max. 220±2℃) |
| Temp. controller | LCD Touch Panel |
| Test timer | Digital memory display / 999.9sec. |
| Alarming device | End buzzer |
| Heater capacity | 180W x 4 |
| Power source | 220VAC 50/60Hz single phase, 750W |
| Weight (Approx.) | 30kg (±2kg) |
|
Dimension (Approx.) |
400(W) x 450(D) x 300(H)mm |
