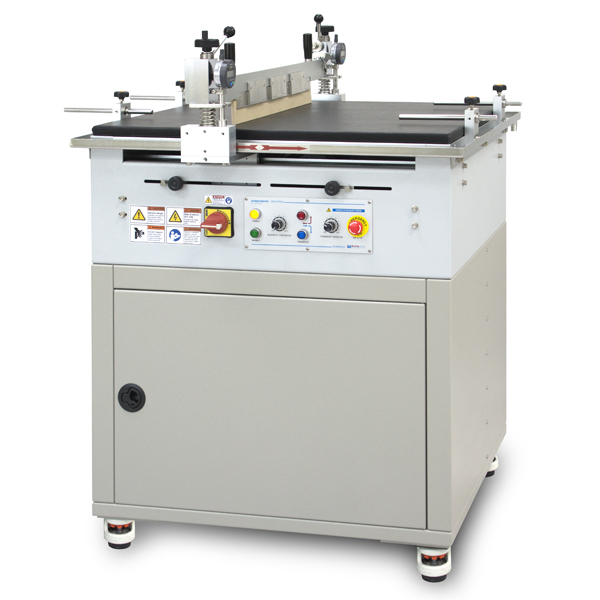

Screen dyeing machine

The DL-2015SP is a high-precision laboratory screen printing machine designed for the accurate application of dyes, pastes, and coatings onto textile specimens. Engineered to provide consistent and repeatable results, it is an essential tool for R&D labs, dye houses, and chemical manufacturers who require standardized sample preparation for color matching and finishing tests.

Equipped with an Inverter-controlled motor and an adjustable electromagnetic system, the DL-2015SP allows for total control over squeegee dynamics and pressure.

Category

Description

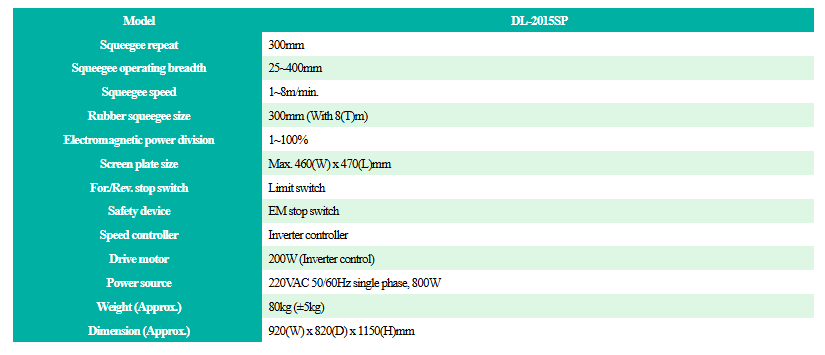

Model

 DL-2015SP

 Squeegee repeat  300mm
 Squeegee operating breadth  25~400mm
 Squeegee speed  1~8m/min.
 Rubber squeegee size  300mm (With 8(T)m)
 Electromagnetic power division  1~100%
 Screen plate size  Max. 460(W) x 470(L)mm
 For./Rev. stop switch  Limit switch
 Safety device  EM stop switch
 Speed ​​controller  Inverter controller
 Drive motor  200W (Inverter control)
 Power source  220VAC 50/60Hz single phase, 800W
 Weight (Approx.)  80kg (±5kg)

 Dimension (Approx.)

 920(W) x 820(D) x 1150(H)mm
