Description

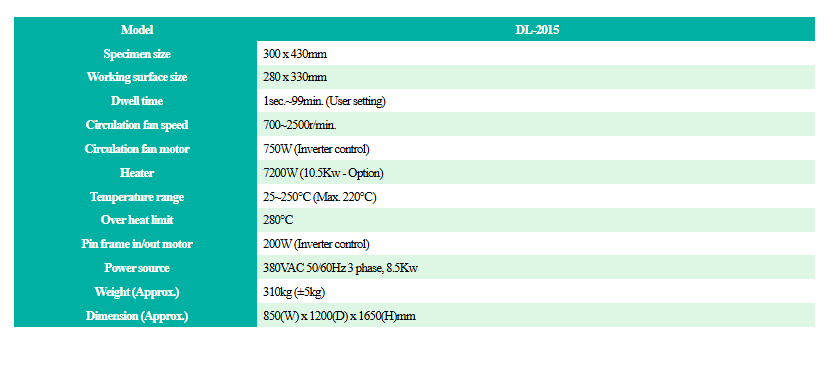

| Model |
 DL-2015 |
| Â Specimen size | Â 300 x 430mm |
| Â Working surface size | Â 280 x 330mm |
| Â Dwell time | Â 1sec.~99min. (User setting) |
| Â Circulation fan speed | Â 700~2500r/min. |
| Â Circulation fan motor | Â 750W (Inverter control) |
| Â Heater | Â 7200W (10.5Kw – Option) |
|  Temperature range |  25~250℃ (Max. 220℃) |
|  Over heat limit |  280℃ |
| Â Pin frame in/out motor | Â 200W (Inverter control) |
| Â Power source | Â 380VAC 50/60Hz 3 phase, 8.5Kw |
|  Weight (Approx.) |  310kg (±5kg) |
|
 Dimension (Approx.) |
 850(W) x 1200(D) x 1650(H)mm |

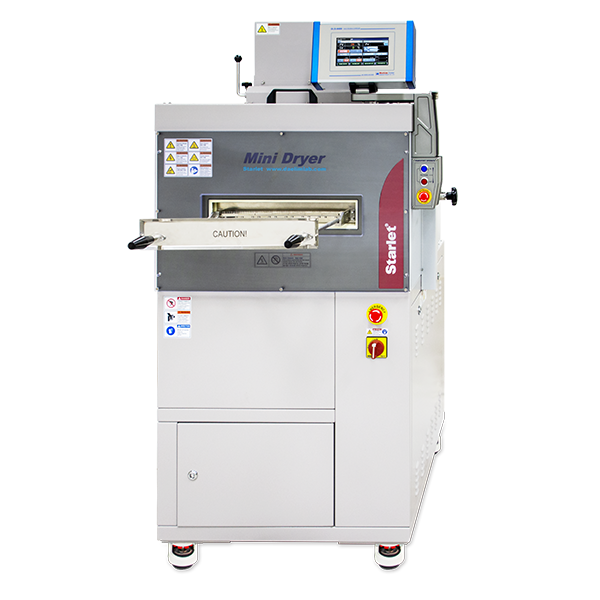

![Mini dryer [mini tenter / automatic discharge dryer / coating curing machine]](https://powerpro-bd.com/wp-content/uploads/2025/12/Mini-dryer-mini-tenter.png)
![Mini dryer [mini tenter / automatic discharge dryer / coating curing machine] - Image 2](https://powerpro-bd.com/wp-content/uploads/2025/12/Mini-dryer-mini-tenter1.png)
