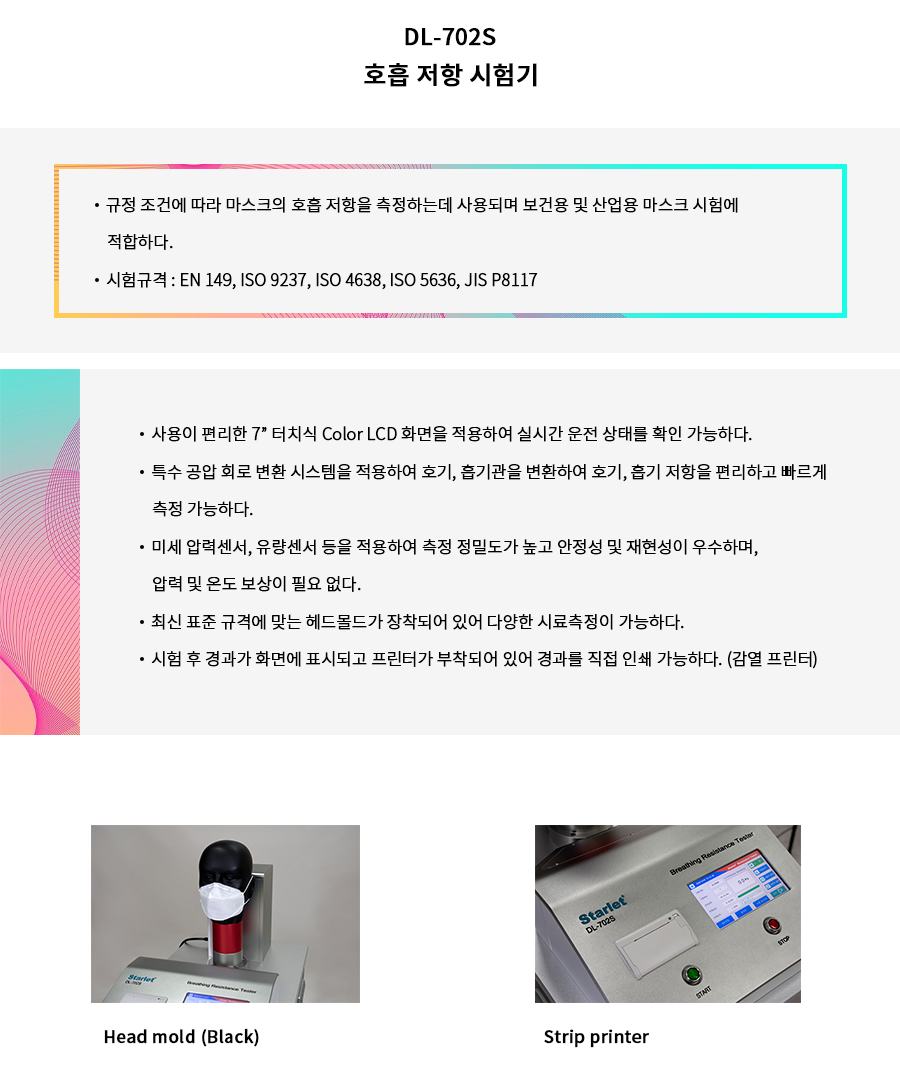

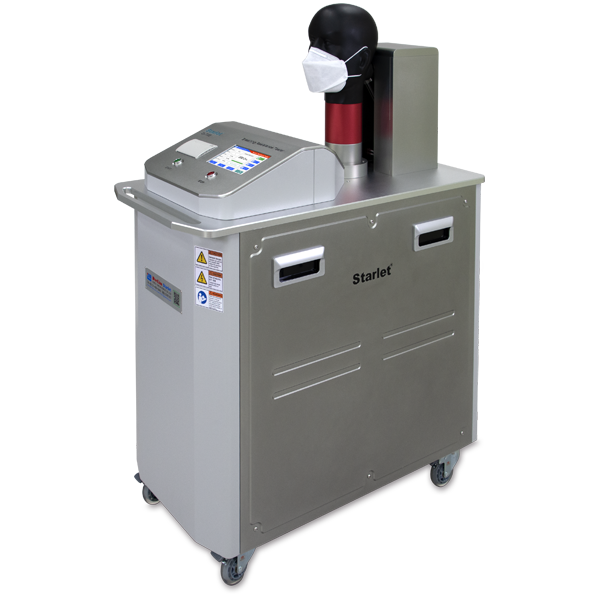

The DL-702S Respiratory Flow & Resistance Tester is a precision instrument for evaluating inhalation and exhalation performance of respiratory devices. It features a 7” color touch panel controller, with exhalation flow up to 197 L/min and inhalation flow up to 97 L/min with ±0.5 L/min accuracy. Resistance is measured in the 0–1000 Pa range (±0.2%FS), using a medium-size standard head mold. Test duration is adjustable up to 9999 seconds. Powered by 220VAC single-phase (1000W), the DL-702S delivers reliable and accurate testing in a compact, robust design.

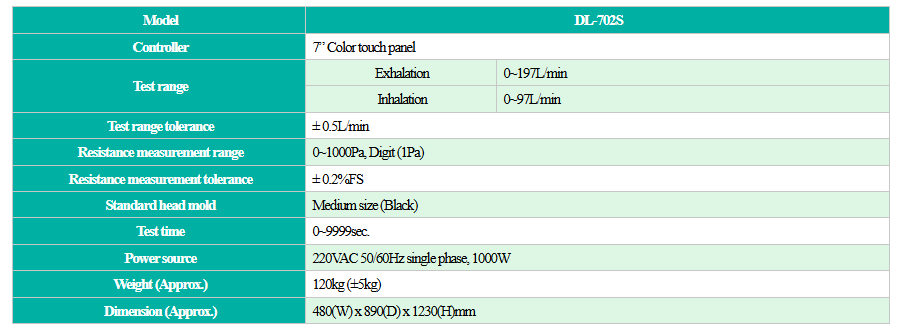

| Model |
DL-702S |
|
| Controller | 7” Color touch panel | |
| Test range | Exhalation | 0~197L/min |
| Inhalation | 0~97L/min | |
| Test range tolerance | ± 0.5L/min | |
| Resistance measurement range | 0~1000Pa, Digit (1Pa) | |
| Resistance measurement tolerance | ± 0.2%FS | |
| Standard head mold | Medium size (Black) | |
| Test time | 0~9999sec. | |
| Power source | 220VAC 50/60Hz single phase, 1000W | |
| Weight (Approx.) | 120kg (±5kg) | |
|
Dimension (Approx.) |
480(W) x 890(D) x 1230(H)mm | |
