Description

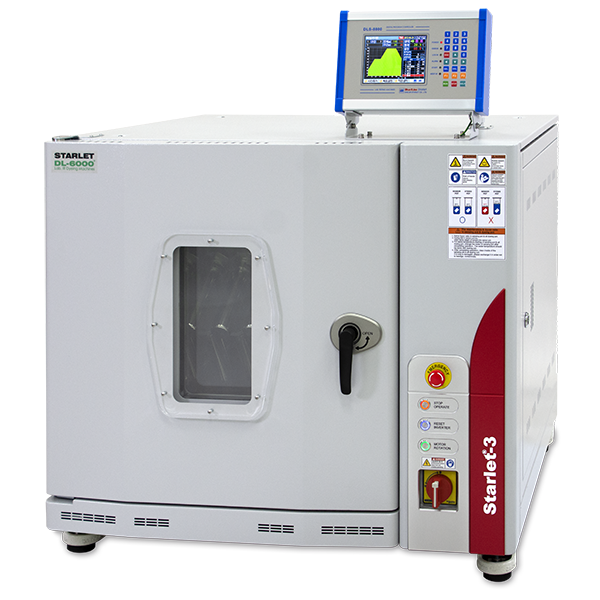

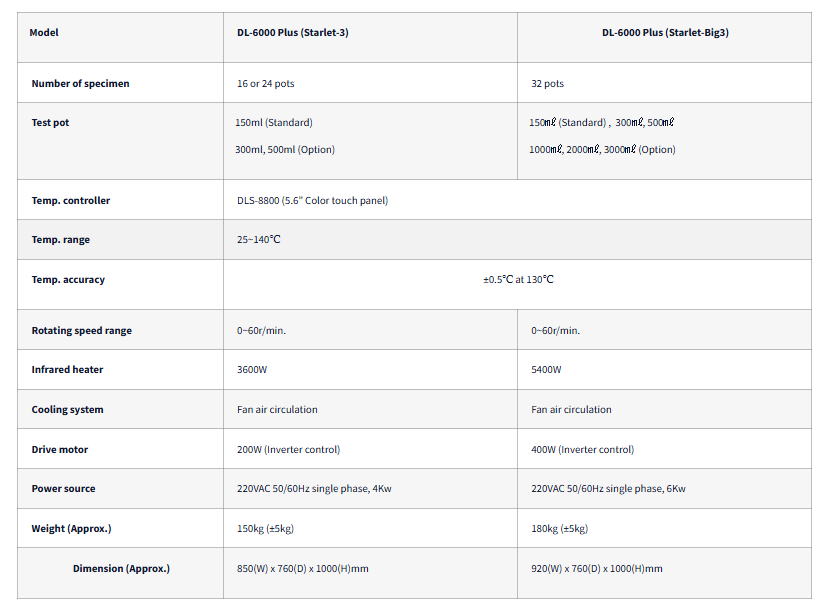

| Model | DL-6000 Plus (Starlet-3) |
DL-6000 Plus (Starlet-Big3) |
| Number of specimen | 16 or 24 pots | 32 pots |
| Test pot | 150ml (Standard)
300ml, 500ml (Option) |
150㎖ (Standard) , 300㎖, 500㎖
1000㎖, 2000㎖, 3000㎖ (Option) |
| Temp. controller | DLS-8800 (5.6” Color touch panel) | |
| Temp. range | 25~140℃ | |
| Temp. accuracy |
±0.5℃ at 130℃ |
|
| Rotating speed range | 0~60r/min. | 0~60r/min. |
| Infrared heater | 3600W | 5400W |
| Cooling system | Fan air circulation | Fan air circulation |
| Drive motor | 200W (Inverter control) | 400W (Inverter control) |
| Power source | 220VAC 50/60Hz single phase, 4Kw | 220VAC 50/60Hz single phase, 6Kw |
| Weight (Approx.) | 150kg (±5kg) | 180kg (±5kg) |
|
Dimension (Approx.) |
850(W) x 760(D) x 1000(H)mm | 920(W) x 760(D) x 1000(H)mm |
