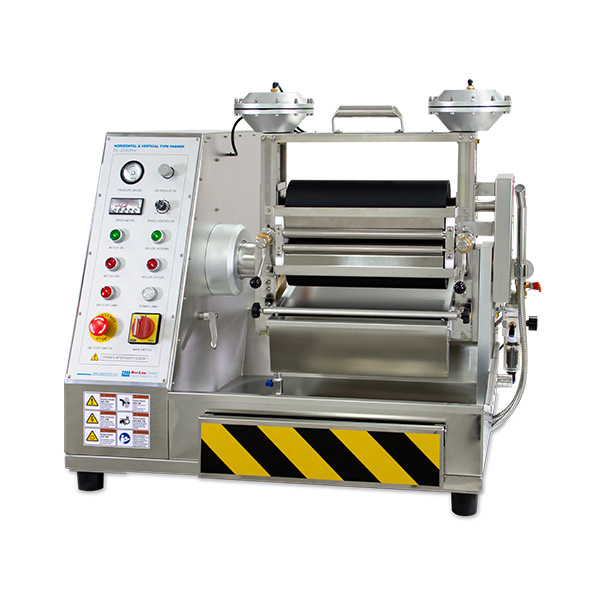

Horizontal/vertical dual-purpose pad

The DL-2500HV is a highly versatile laboratory padding mangle that offers the unique capability of both Horizontal and Vertical operation. This dual-mode design allows researchers to switch between immersion padding and surface coating/impregnation, making it a comprehensive solution for textile finishing, dyeing, and chemical application testing.

Equipped with a Diaphragm-type thrust cylinder, this unit provides exceptionally smooth and sensitive pressure control compared to standard piston systems, ensuring maximum precision for delicate fabric samples.

Category

Description

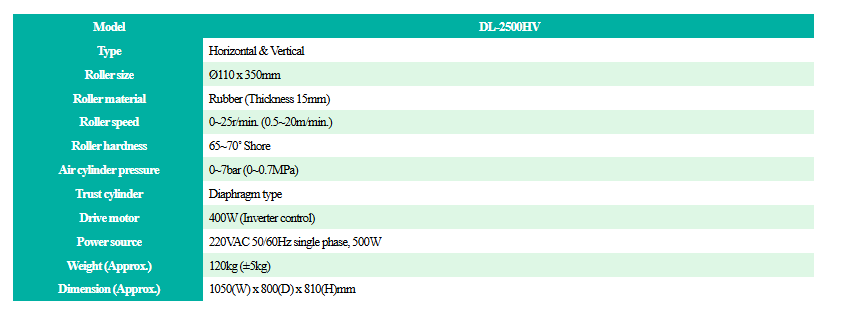

Model

 DL-2500HV

 Type  Horizontal & Vertical
 Roller size  Ø110 x 350mm
 Roller material  Rubber (Thickness 15mm)
 Roller speed  0~25r/min. (0.5~20m/min.)
 Roller hardness  65~70˚ Shore
 Air cylinder pressure  0~7bar (0~0.7MPa)
 Trust cylinder  Diaphragm type
 Drive motor  400W (Inverter control)
 Power source  220VAC 50/60Hz single phase, 500W
 Weight (Approx.)  120kg (±5kg)

 Dimension (Approx.)

 1050(W) x 800(D) x 810(H)mm

Download Catalog
