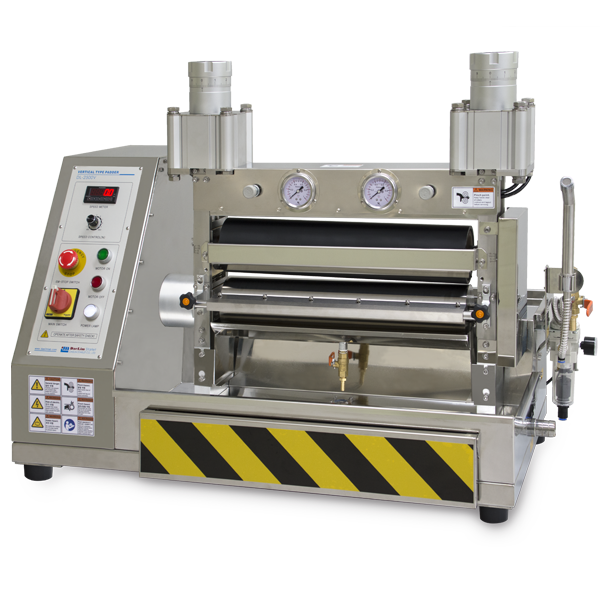

The DL-2500GV is a high-precision vertical padding and coating mangle designed for uniform liquid application and impregnation of textile samples. Featuring a specialized roller configuration and an integrated Doctor Blade system, this unit is engineered for laboratories that require consistent “pick-up” rates and smooth coating finishes.
Constructed for durability and ease of operation, the DL-2500GV utilizes a piston-type air cylinder to provide exact, repeatable pressure across the entire 450mm working width.

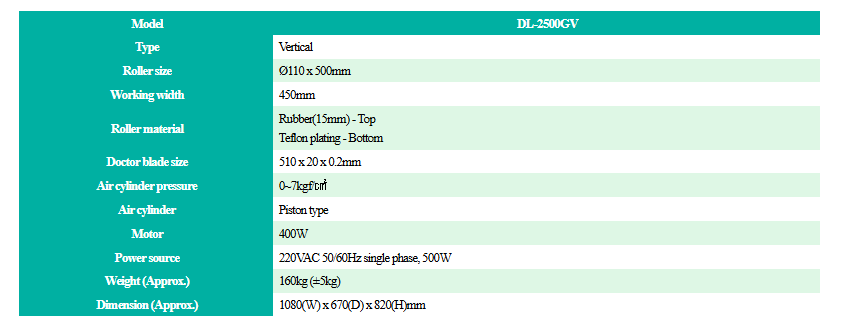

| Â Model |
 DL-2500GV |
| Â Type | Â Vertical |
|  Roller size |  Ø110 x 500mm |
| Â Working width | Â 450mm |
| Â Roller material | Â Rubber(15mm) – Top
 Teflon plating – Bottom |
| Â Doctor blade size | Â 510 x 20 x 0.2mm |
|  Air cylinder pressure |  0~7kgf/㎠|
| Â Air cylinder | Â Piston type |
| Â Motor | Â 400W |
| Â Power source | Â 220VAC 50/60Hz single phase, 500W |
|  Weight (Approx.) |  160kg (±5kg) |
|
 Dimension (Approx.) |
 1080(W) x 670(D) x 820(H)mm |
