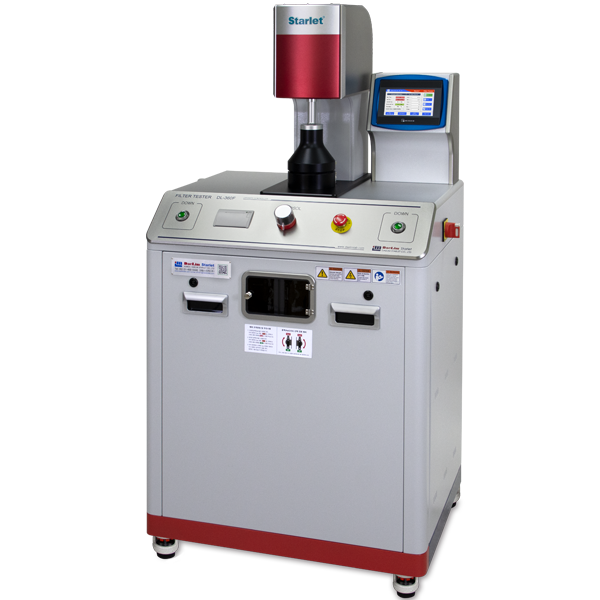

The DL-360F Filter Efficiency Tester is a high-precision laboratory instrument for evaluating air filter performance. It operates with a flow range of 10–100 L/min (±2% accuracy), measures filter efficiency from 0.001–99.999%, and monitors resistance up to 600 Pa (±2% accuracy). The system supports a 100 cm² test area and uses paraffin oil or NaCl aerosols (optional) with particle sizes ranging from 0.3–10 μm. Equipped with an atomizer generator and laser scattering condensation particle counter, the DL-360F delivers accurate, reliable results. Powered by 220VAC single-phase (1000W), it is ideal for advanced filtration testing applications.

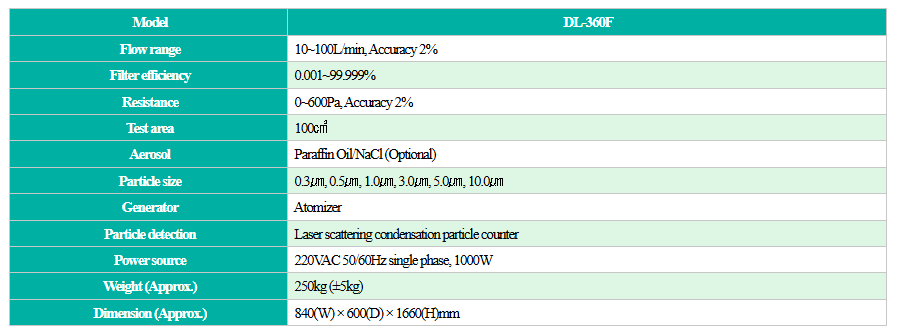

| Model |
DL-360F |
| Flow range | 10~100L/min, Accuracy 2% |
| Filter efficiency | 0.001~99.999% |
| Resistance | 0~600Pa, Accuracy 2% |
| Test area | 100㎠ |
| Aerosol | Paraffin Oil/NaCl (Optional) |
| Particle size | 0.3㎛, 0.5㎛, 1.0㎛, 3.0㎛, 5.0㎛, 10.0㎛ |
| Generator | Atomizer |
| Particle detection | Laser scattering condensation particle counter |
| Power source | 220VAC 50/60Hz single phase, 1000W |
| Weight (Approx.) | 250kg (±5kg) |
|
Dimension (Approx.) |
840(W) × 600(D) × 1660(H)mm |
