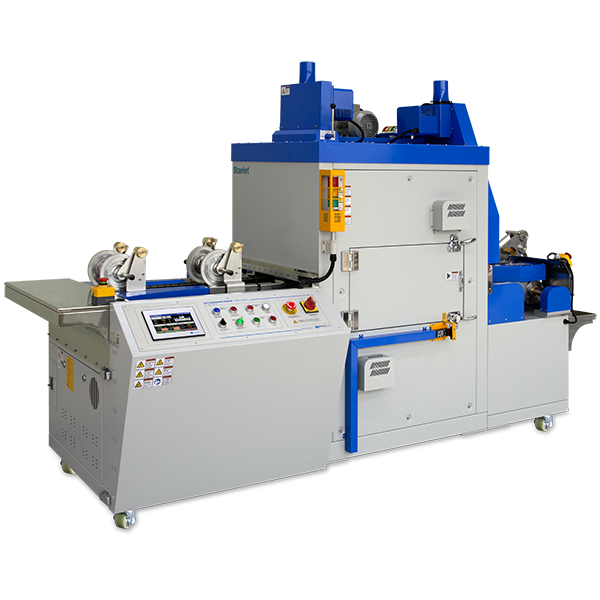

Continuous Tenter (1 Chamber)

The DL-2015CS1 is a high-capacity, single-chamber laboratory stenter designed for continuous heat-setting, drying, and curing processes. Bridging the gap between small-scale sampling and industrial production, this model features a 7-inch color touch panel and a powerful 30Kw heating system, making it the premier choice for textile researchers and finishing plants requiring precise thermal control.

Equipped with an adjustable nozzle system and an automated depinning exit, the DL-2015CS1 ensures uniform fabric treatment across its generous 400mm working width.

Category

Description

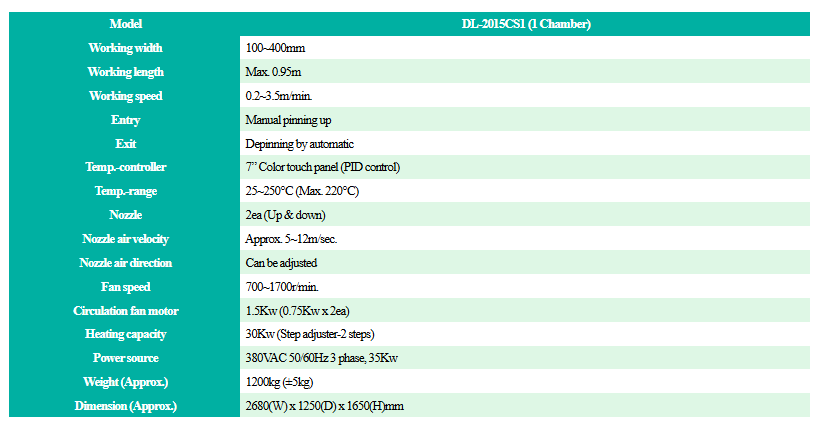

Model

 DL-2015CS1 (1 Chamber)

 Working width  100~400mm
 Working length  Max. 0.95m
 Working speed  0.2~3.5m/min.
 Entry  Manual pinning up
 Exit  Depinning by automatic
 Temp.-controller  7” Color touch panel (PID control)
 Temp.-range  25~250℃ (Max. 220℃)
 Nozzle  2ea (Up & down)
 Nozzle air velocity  Approx. 5~12m/sec.
 Nozzle air direction  Can be adjusted
 Fan speed  700~1700r/min.
 Circulation fan motor  1.5Kw (0.75Kw x 2ea)
 Heating capacity  30Kw (Step adjuster-2 steps)
 Power source  380VAC 50/60Hz 3 phase, 35Kw
 Weight (Approx.)  1200kg (±5kg)

 Dimension (Approx.)

 2680(W) x 1250(D) x 1650(H)mm

Download Catalog
